Hordhac
Ku xidhayaasha haydarooliga mitirka ayaa ah kuwo sare - xidhiyaasha waxqabadka ee loogu talagalay nidaamyada hawo-biyoodka ee u hogaansama ISO (Ururka Caalamiga ah ee Halbeega) iyo DIN (Deutsches Institut für Normung) qeexitaanka. Qalabyadani waxay xaqiijiyaan aamin, daadsan -isku xidhka caddaynta sare-cadaadiska codsiyada haydarooliga, taas oo ka dhigaysa kuwa ku haboon warshadaha, beeraha, dhismaha, iyo mishiinada mobilada.
Tilmaamaha
|
QAYBTA NO. |
Xalka E |
HOSE BORE |
O- RING |
CABIRKA |
|
||
|
DN |
DASH |
A |
B |
S1 |
|||
|
14211-04-04 |
9/16"X18 |
6 |
04 |
O011 |
22.3 |
9.8 |
17 |
|
14211-06-04 |
11/16"X16 |
6 |
04 |
O012 |
24 |
11.2 |
19 |
|
14211-06-06 |
11/16"X16 |
10 |
06 |
O012 |
24 |
11.2 |
19 |
|
14211-08-06 |
13/16"X16 |
10 |
06 |
O014 |
27.5 |
12.8 |
22 |
|
14211-08-08 |
13/16"X16 |
12 |
08 |
O014 |
28.5 |
12.8 |
22 |
|
14211-08-10 |
13/16"X16 |
16 |
10 |
O014 |
28.5 |
12.8 |
22 |
|
14211-10-08 |
1"X14 |
12 |
08 |
O016 |
32.5 |
15.5 |
27 |
|
14211-10-10 |
1"X14 |
16 |
10 |
O016 |
34 |
15.5 |
27 |
|
14211-12-08 |
1.3/16"X12 |
12 |
08 |
O018 |
35.5 |
17 |
32 |
|
14211-12-10 |
1.3/16"X12 |
16 |
10 |
O018 |
36.5 |
17 |
32 |
|
14211-12-12 |
1.3/16"X12 |
20 |
12 |
O018 |
36.5 |
17 |
32 |
|
14211-16-12 |
1.7/16"X12 |
20 |
12 |
O021 |
37 |
17.5 |
38 |
|
14211-16-16 |
1.7/16"X12 |
25 |
16 |
O021 |
38.5 |
17.5 |
38 |
|
14211-20-20 |
1.11/16"X12 |
32 |
20 |
O025 |
41.5 |
17.5 |
46 |
|
14211-24-24 |
2"X12 |
40 |
24 |
O029 |
43.5 |
17.5 |
55 |
Halbeegyada/Xogta Farsamada
|
Asalka |
ZheJiang, Shiinaha |
Taariikhda keenista |
La gorgortami karo |
|
Shahaado |
GB/T19001-2016 idt ISO9001:2015 |
Baakad |
heerka dhoofinta |
|
Qalab |
Birta Kaarboonka |
Dammaanad |
1 sano |
|
Mudada lacag bixinta |
TT |
MOQ |
2000 |
|
Xaalad |
Cusub |
Midabka |
Zinc cad, zinc midabka |
Ku saabsan Shirkadda
Faa'iidooyinka
Warshada {{0}Qiimeynta tooska ah – Ma jiro wax calaamadeya dhexda dhexe
Kharashyada hoose - baabi'inta qaybiyeyaasha macnaheedu waa qiimo wanaagsan adiga.
Qiimo dhimis badan - Qiimaha tartanka ee dalabaadka waaweyn -
Xigashooyinka gaarka ah - Qiimaha ku habboon shuruudaha gaarka ah.
Buuxa- Xakamaynta Waxsoosaarka Guriga
Dhamaadka{0}}ilaa{1}dhamaadka wax soo saarka – Laga bilaabo alaabta ceeriin ilaa badeecada dhammaatay, iyada oo la hubinayo tayada joogtada ah.

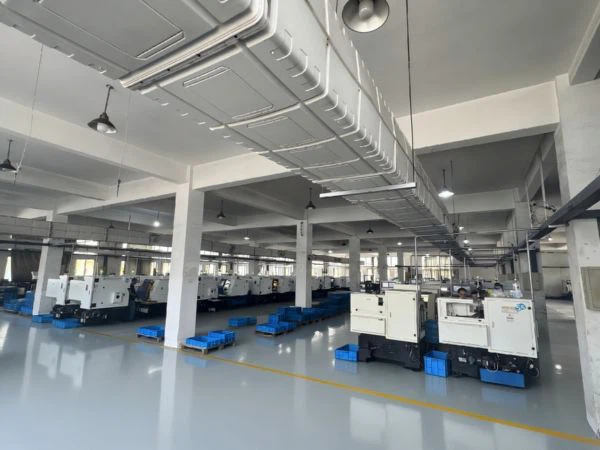

Mashiinka sare ee CNC - injineernimada saxda ah ee dulqaadka dunta qumman (ISO/DIN waafaqsan).

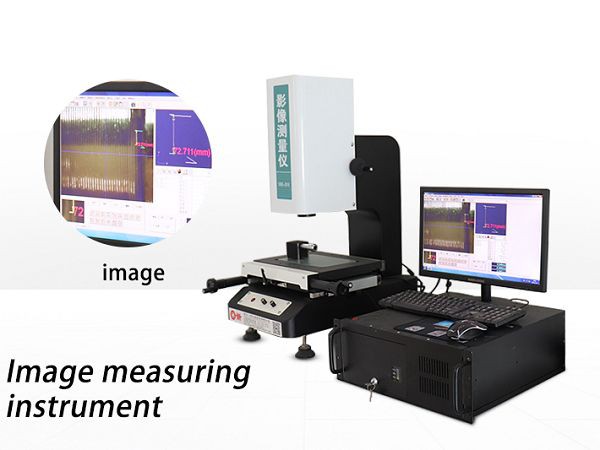

Hubinta tayada adag - Qalab kasta oo ku habboon ayaa mara tijaabada cadaadiska, kormeerka cabbirka, iyo xaqiijinta daaweynta dusha sare.
Tayada Sare & U Hogaansanaanta
Qalabka:
Birta kaarboon (zinc{0}}plated/black oxide) – Xoog sare iyo caabbinta daxalka.
Birta aan-dhalin (A2/A4) - Ku habboon bay'ada qallafsan (bad, kiimiko, cunto{2}}darajada).
Naxaasta – Loogu talagalay -cadaadiska hooseeya iyo codsiyada aan{1}}dhaldhici lahaa.
Shahaadooyinka:
ISO 9001 - Maareynta tayada la damaanad qaaday.
CE, RoHS - La kulan heerarka Yurub iyo kuwa caalamiga ah.
Cadaadis{0} la tijaabiyay - Ilaa 700 bar (10,{3}} PSI) ee codsiyada muhiimka ah.

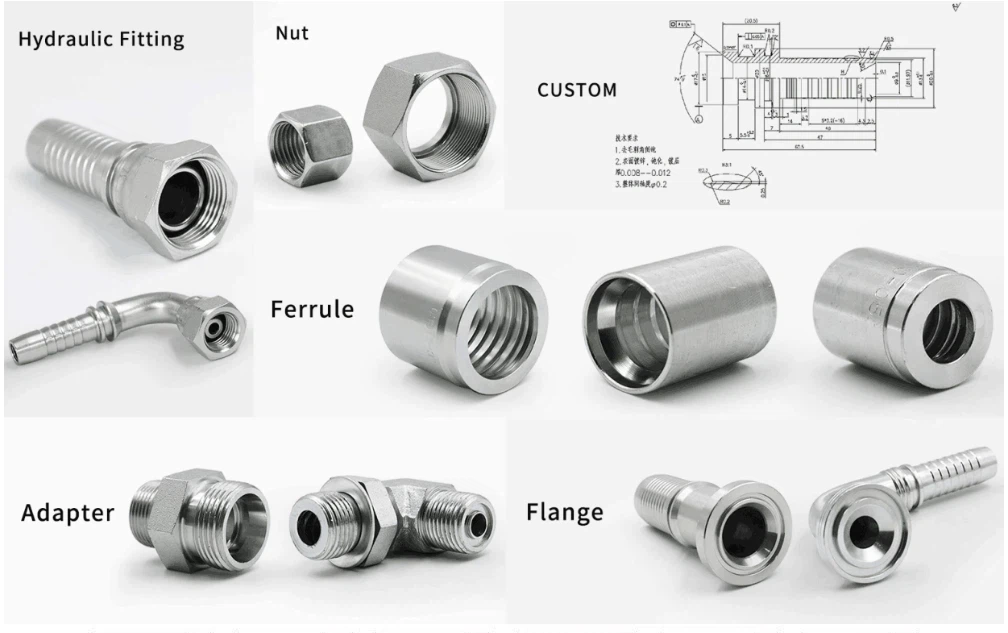

Baaxadda Badeecooyinka iyo Xalalka Gaarka ah
Qalabka caadiga ah:
DIN 2353 ( koorta 24 darajo)
Metric ORB (O-Ring Boss, DIN 3852)
Metric BSPP/BSPT (ISO 1179/7-1)
Ikhtiyaarada habaynta:
Cabbirrada gaarka ah (M8 ilaa M64+)
Dahaaryo gaar ah (nikkel{0}ku dhejiyay, la dahaadhay, galvanized)
Tilmaamaha dunta loo habeeyey & naqshadaynta xidhidhiyaha
Waqtiyada Hogaaminta Degdega ah & Bixinta Lagu kalsoonaan karo

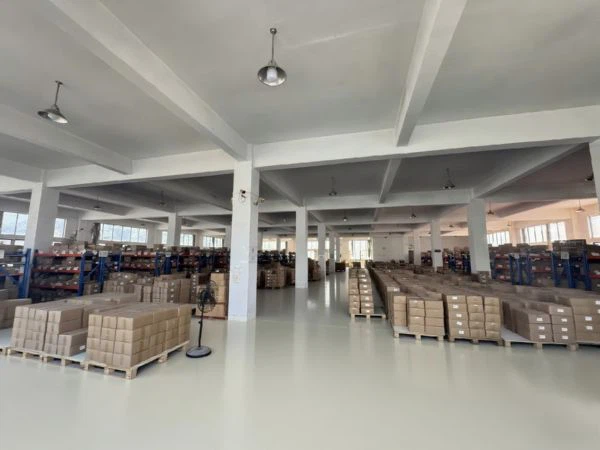

Alaabada waaweyn - Diyaar u ah- in - lagu raro kaydka cabbirada guud.
Wax soo saar hufan – MOQ-saaxiibtinimo, leh 15-30 maalmood wakhtiyada hogaaminta dalabaadka gaarka ah.
Saadka caalamiga ah - Khibrad u leh dhoofinta Yurub, Waqooyiga Ameerika, Aasiya, iyo in ka badan.
Taageerada Farsamo ee Khabiirka
Kaalmada Injineerinka - Kaalmada qaabaynta nidaamka, xulashada alaabta, iyo waafaqsanaanta dunta.
Kadib {{0}Adeegga iibka – Kooxda u go'ay cilad-raadinta iyo beddelka
FAQ
S: Sideed u hubinaysaa ilaalinta tayada?
J: Damaanad qaadkayaga tayada 3-tallaabo:
Kormeerka agabka: Tijaabada Spectrometer ee alaabta ceeriin
Xakamaynta habka: Mashiinka CNC oo leh 0.01mm sax ah
Xaqiijinta kama dambaysta ah: 100% tijaabada cadaadiska + hubinta cabbirka
S: Waa maxay wakhtiga hogaanka wax soo saarkaagu?
A: Gudaha-Alaabaha kaydka ah: Lagu soo raray 3 maalmood oo shaqo gudahood
Wax soo saarka caadiga ah: 15-20 maalmood ka dib xaqiijinta dalabka
Mashaariic gaar ah: 25-45 maalmood (waxay kuxirantahay kakanaanta)
S: Ma bixisaa muunado?
J: Haa! Waxaan bixinaa:
Muunado bilaash ah oo loogu talagalay badeecadaha caadiga ah (macmiilka ayaa bixiya rarida)
Adeegga muunadda gaarka ah ( khidmadda horumarinta ayaa khuseysa, laga jari karo dalabaadka badan)
S: Waa maxay shahaadooyinka aad haysatid?
A: ISO 9001:2015
Calaamadeynta CE
U Hogaansanaanta RoHS
Warbixinnada tijaabada walxaha (MTR) ayaa la heli karaa marka la codsado
S: Sideed u maamushaa dhoofinta iyo dhoofinta?
J: Waxaan khibrad dheer u leenahay:
EXW, FOB, CIF shuruudaha
Dhoofinta caalamiga ah (DHL/FedEx ee muunado; xamuulka badda ee bulk)
Dukumeenti Dhoofinta (Biilka Ganacsiga, Liiska Xidhmada, COC, iwm.)
S: Maxaa dhacaya haddii aan qabo su'aalo farsamo oo ku saabsan codsigeyga?
J: Kooxdayada injineernimada waxay bixisaa:
Tilmaanta waafaqsanaanta xadhigga
Talada xulashada alaabta
Talooyinka cadaadiska nidaamka
sawirada CAD marka la codsado
S: Maxaad warshadaada uga doorataa tartamayaasha?
J: Qiimaha tooska ah (30-50% ka hooseeya ganacsatada)
Awood is-beddel buuxa (lammaanaha OEM dhabta ah)
Xakamaynta tayada adag (0.2% heerka cilladaysan)
Jawaab degdeg ah (soojeedin 24-saac ah)
