Hordhac

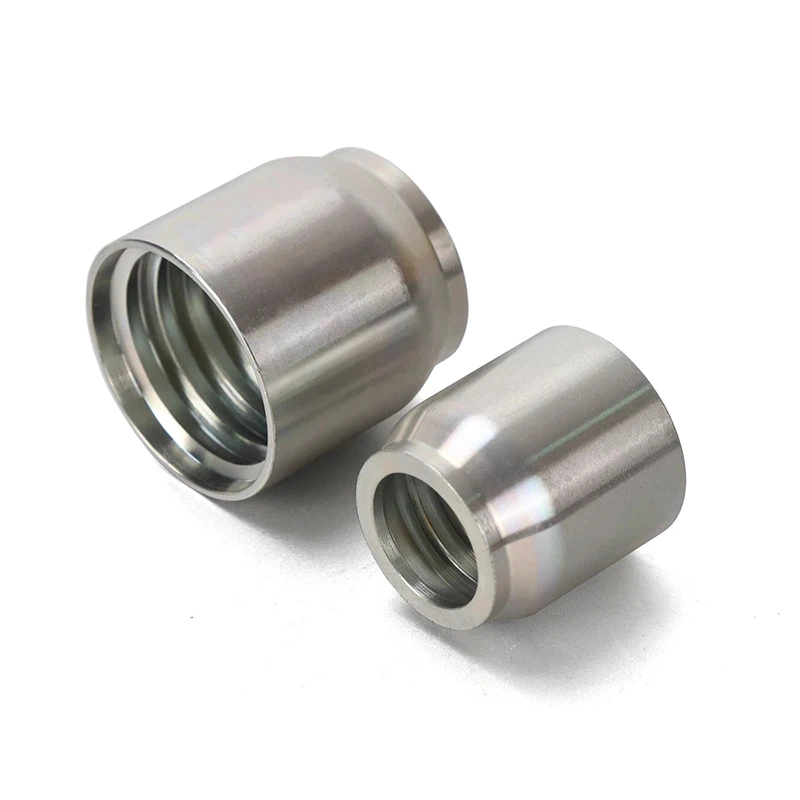

Socket-ka Hose Fittings Hydraulic waa qayb crimping premium ah oo loogu talagalay abuurista ultra{0}ammaan, sare{1}xidhiidhada cadaadiska ee shirarka tuubada haydhiyrooliga. Adeegsiga tignoolajiyada siliga badan ee horumarsan, socket-kani waxa uu keenaa xoog xidhid gaar ah iyo daadinta{4}}waxqabadka caddaynta ee codsiyada tamarta dareeraha ah ee ugu baahida badan.
Tilmaamaha Farsamada
| Qalabka | chrome been abuur ah - bir bir ah (AISI 4140) oo leh zinc{2}} nikkel |
| Qiimaynta Cadaadiska | 6,000 PSI (414 bar) heerka, ilaa 10,000 PSI (690 bar) la heli karo |
| Kala duwanaanta heerkulka | -40 darajo F ilaa +250 darajo F (-40 darajo ilaa +121 darajo) |
| Baaxadda cabbirka | 1/4 "ilaa 2" (6mm ilaa 50mm) dhexroorka tuubada |
| U Hogaansanaanta Heerarka | SAE J517, ISO 18752, DIN 20066 |
| Habaynta Siliga | 4-dhismo tidcan silig (6-silig ikhtiyaar ah) |
| Dhamaystir dusha sare | 12-32 μin Ra loogu talagalay waxqabadka curyaanka ugu fiican |
Tilmaamaha
|
QAYBTA NO. |
HOSE BORE |
CABIRKA |
||
|
DN |
DASH |
|
L |
|
|
00TF0-03 |
4 |
03 |
27.5 |
|
|
00TF0-04 |
6 |
04 |
30.7 |
|
|
00TF0-05 |
8 |
05 |
30.6 |
|
|
00TF0-06 |
10 |
06 |
32.1 |
|
|
00TF0-08 |
12 |
08 |
34.3 |
|
|
00TF0-10 |
16 |
10 |
37 |
|
|
00TF0-12 |
20 |
12 |
42.8 |
|
|
00TF0-14 |
22 |
14 |
42.7 |
|
|
00TF0-16 |
25 |
16 |
50.8 |
|
Halbeegyada/Xogta Farsamada
|
Asalka |
ZheJiang, Shiinaha |
Taariikhda keenista |
La gorgortami karo |
|
Shahaado |
GB/T19001-2016 idt ISO9001:2015 |
Baakad |
heerka dhoofinta |
|
Qalab |
Birta Kaarboonka |
Dammaanad |
1 sano |
|
Mudada lacag bixinta |
TT |
MOQ |
2000 |
|
Xaalad |
Cusub |
Midabka |
Zinc cad, zinc midabka |
Ku saabsan Shirkadda
Faa'iidooyinka
Saxnaanta Injineerada ee Waxqabadka Sare
Waxaa lagu soo saaray ISO 18752 iyo SAE J518 oo leh ± 0.005" dulqaad
CNC{0}oo laga sameeyay darajada 4140 birta daawaha ah
Cadaadis lagu tijaabiyay 1.5x cadaadis shaqo oo leh dukumeenti buuxa
Leak Cusub{0}Naqshadda Cadaynta
Saddex-jibbaalle oo rukhsad leh{0}Tiknoolajiyada Seal™ isku darka:
Bir - ilaa - shaabaddii aasaasiga ahayd ee birta
Sare O{0} jeexdin giraanta
Sifada qufulka dunta
100% ka daadanaya{1}Dammaanad bilaash ah codsiyada joogtada ah iyo kuwa firfircoon
Tilmaamaha Waarta ee La xoojiyey
Daaweynta dusha adag (HRC 58-62) ee 3x nolol adeeg oo dheer
Daxalka{0}Ikhtiyaarada u adkaysta oo ay ku jiraan Zinc{1}} dajinta nikkel iyo bakhtiinta
Kahortagga - jeexjeexyada gariirku waxay ka hortagaan dabacsanaanta codsiyada soo noqnoqda
Waafaqid Caalamka

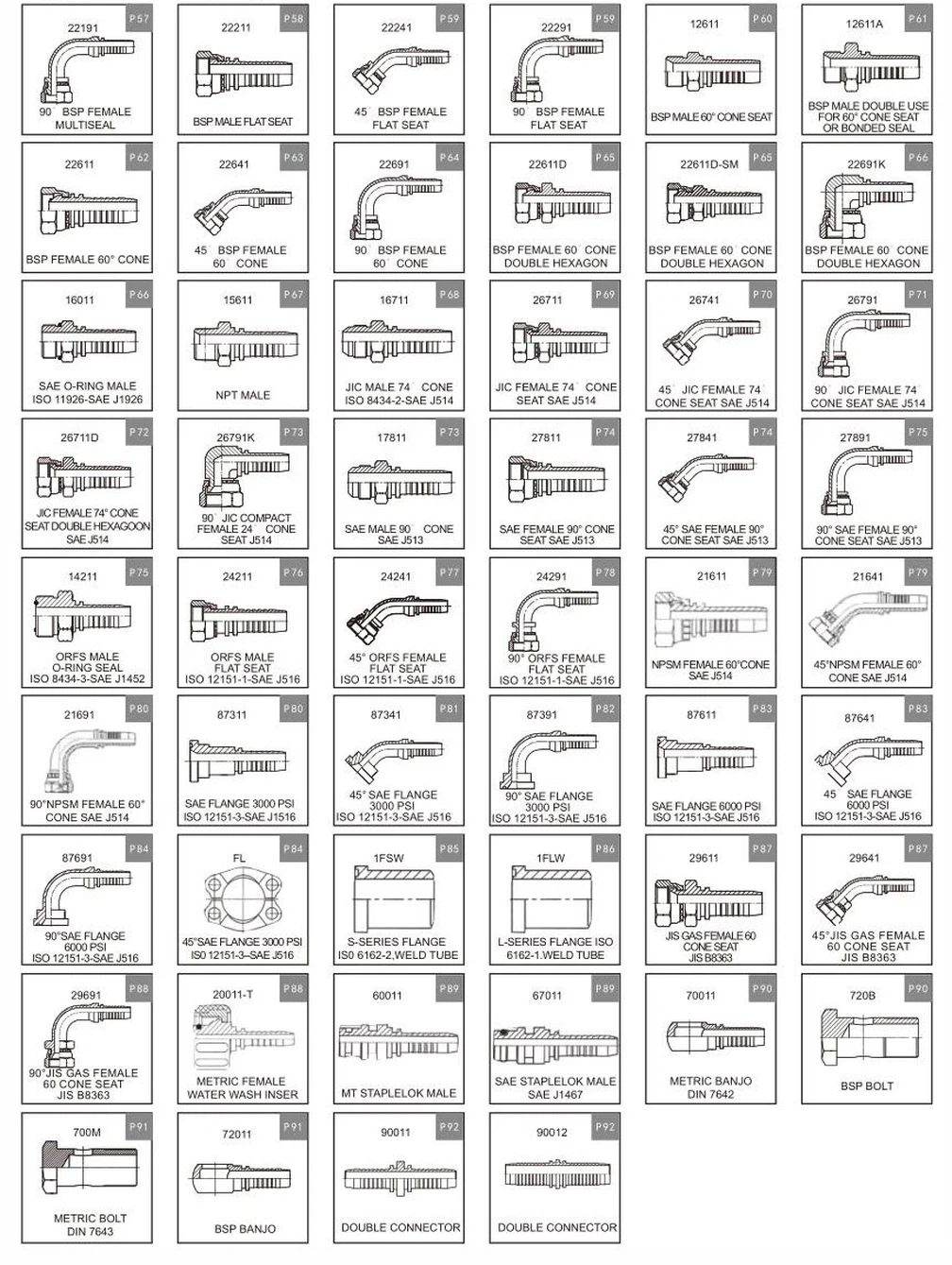

Laga heli karo dhammaan noocyada dunta caadiga ah:
JIC 37 darajo (SAE J514)
NPT/BSP (ASME B1.20.1/ISO 7-1)
ORFS (SAE J1453)
Isweydaarsiga tooska ah ee noocyada waaweyn (Parker, Eaton, Gates)
Codsiga -Xal gaar ah
Sare -Taxane Nadiif ah: Dhammays koronto ah oo la xiiray ee darajada daawada/cuntada
Waajibka XTreme: Daahan Tungsten carbide ah oo loogu talagalay warbaahinta abrasive
Derejada Debadeed: DNV-GL shahaado u leh codsiyada badda
Wanaagga wax soo saarka
100% kormeer otomaatig ah oo ay ku jiraan:
Imtixaanka Eddy hadda
Ogaanshaha daadinta Helium
Falanqaynta qallafsanaanta dusha sare
Raadinta walxaha buuxa oo leh raadraaca lambarka kulaylka
Qiimaha -Adeegyada lagu daray
Calaamadaynta gaarka ah/ xaradhka leysarka ee maaraynta hantida
Adeegyada kitting iyo pre{0} shirka
24/7 taageero farsamo oo leh jilitaanka FEA oo la heli karo
Silsilad sahayda lagu kalsoonaan karo
Kaydka caalamiga ah ee 5 goobood oo istiraatiiji ah
15-maalmood wakhtiga hogaaminta ee qeexida gaarka ah
Barnaamijyada VMI waxay diyaar u yihiin la-hawlgalayaasha OEM
FAQ
S: Waa maxay Socket-ka Tuubada Haydarooliga?
A: Socket-ka Tuubbada Haydarooliga ah waa nooc ka mid ah qaybta isku xidhka ee loo isticmaalo in lagu xidho tuubooyinka hawo-biyoodka iyo qalab kala duwan, iyada oo hubinaysa inay sugan tahay oo dillaacsan tahay
S: Waa maxay agabka laga sameeyay Saldhigyada Tuubbada Haydarooliga?
A: Inta badan saldhigyada waxaa laga sameeyaa walxo raagaya sida:
Birta kaarboon
birta aan-dhalatada lahayn
Naxaas
Qalabkani waxa ay bixiyaan xoog, iska caabin daxalka, iyo{0}kalsoonida muddada dheer.
S: Waa maxay noocyada caadiga ah ee saldhigyada tuubada Haydarooliga?
A: Noocyada caadiga ah waxaa ka mid ah:
JIC (Golaha Wershadaha Wadajirka ah) Sockets – 37{1}} xirmooyinka dabka ee heerka cadaadiska sare.
NPT (Xadhkaha Dhuumaha Qaranka) Saldhigyada - Xadhkaha duuban ee xidhidhiyaha
BSP (British Standard Pipe) Sockets - Duubyo barbar socda ama duuban oo ku salaysan heerarka.
ORFS (O-Ring Face Seal) Sockets - Flat{1} waji daboolida giraanta O{2} si looga hortago daadinta
S: Sideen ku dooran karaa Socket-ka Tuubada Haydarooliga ee saxda ah?
J: Tixgeli arrimahan soo socda:
Nooca xadhigga iyo cabbirka (tusaale, JIC, NPT, BSP, ORFS)
Dhexroorka tuubada gudaha (ID) iyo dhexroorka dibadda (OD)
Qiimaynta cadaadiska (waa inay waafaqsan tahay shuruudaha nidaamka)
Ku habboonaanta walxaha (ku salaysan nooca dareeraha iyo deegaanka)
S: Sideen u rakibaa Socket-ka Tuubada Haydarooliga?
J: Ka eeg godka iyo tuubada burburka.
Tuubada si nadiif ah u jar oo ka jar geesaha.
Geli tuubada godka oo ku xafid crimping ama ferrule.
Adkee ku-xidhka adiga oo isticmaalaya qeexitaannada qulqulka saxda ah si aad uga fogaato daadinta.
S: Sideen uga hortegi karaa inay soo daadato Saldhigyada Xirmooyinka Haydarooliga?
J: Hubi in si sax ah loo curyaamiyo ama la isugu keeno.
Isticmaal dunta dunta leh ama cajalad Teflon ah (oo loogu talagalay dunta NPT).
Iska hubi giraanta O{0} ee xidhan (ku jira qalabka ORFS).
Iska ilaali inaad si xad dhaaf ah u adkaysato, taas oo dhaawici karta dunta.
S: Waa maxay qiimaynta cadaadiska ay taageerto Sockets Hose Fittings Hydraulic Hose?
J: Qiimaynta cadaadisku waxay ku kala duwan tahay nooca iyo agabka, laakiin kala duwanaanshaha guud waa:
JIC & ORFS: Ilaa 6,000 PSI (waxay kuxirantahay cabbirka)
NPT & BSP: Caadi ahaan 3,000-5,000 PSI
Had iyo jeer xaqiiji tilmaamaha soo saaraha ee codsigaaga.
S: Ma dib u isticmaali karaa Socket-ka Tuubada Haydarooliga?
J: Saldhigyada qaarkood ayaa dib loo isticmaali karaa haddii aanay waxyeello gaadhin, laakiin qalabka qallafsan ama la jeexjeexay waxay caadi ahaan u baahan yihiin beddelaad ka dib kala furfurid. Had iyo jeer iska hubi xidhashada ama qallafsanaanta ka hor inta aan dib loo isticmaalin.
S: Sideen u ilaaliyaa Saldhigyada Tuubbada Haydarooliga?
J: Si joogto ah u baadh meelaha dillaacsan, dildilaaca, ama daxalka.
Nadiifi dunta iyo xidhid dusha sare ka hor inta aan dib la isugu keenin.
Isla markiiba u beddel qaybaha dhaawacan ama duugoobay.
