Hordhac

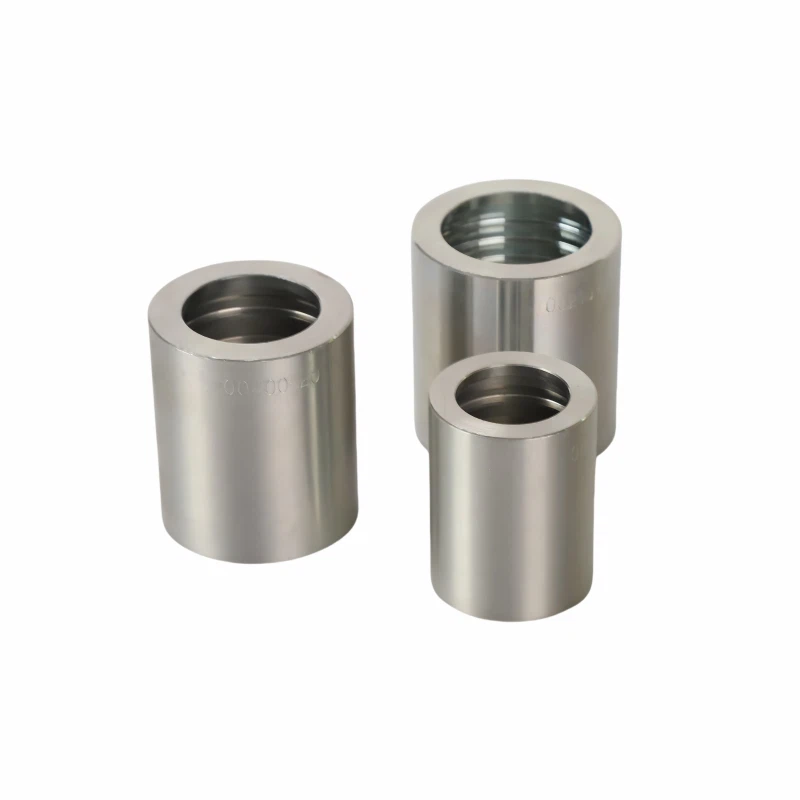

Albaabka 4 -Wire Hydraulic Ferrule waa mid sare - qayb wax qabad oo loogu talagalay in lagu sugo, daadsan - isku xirka cadaymaha ee isku xirka tuubooyinka hawo-qaadida. Lagu naqshadeeyay nidaamyada wareejinta dareeraha cadaadiska sare, ferrule-kani waxa uu xaqiijiyaa qabsashada ugu badan iyo hufnaanta dalbashada codsiyada warshadaha, mobilada, iyo wadooyinka ka baxsan.
Tilmaamaha
|
QAYBTA NO. |
HOSE BORE |
CABIRKA |
|
|
DN |
DASH |
L |
|
|
00401-20 |
32 |
20 |
59 |
|
00401-24 |
40 |
24 |
74 |
|
00401-32 |
50 |
32 |
78 |
Halbeegyada/Xogta Farsamada
|
Asalka |
ZheJiang, Shiinaha |
Taariikhda keenista |
La gorgortami karo |
|
Shahaado |
GB/T19001-2016 idt ISO9001:2015 |
Baakad |
heerka dhoofinta |
|
Qalab |
Birta Kaarboonka |
Dammaanad |
1 sano |
|
Mudada lacag bixinta |
TT |
MOQ |
2000 |
|
Xaalad |
Cusub |
Midabka |
Zinc cad, zinc midabka |
Ku saabsan Shirkadda
Faa'iidooyinka
Warshadaha -Tignoolajiyada Haynta Hogaaminaysa
Quad{0}}Dhismaha tidcan siliggu waxa uu keenaa 40% xoog isku xidhka ka sareeya nashqadaha 2-siliga caadiga ah
Joomatari siliga isku xidhan ee shati-ku-xidhan ayaa ka hortagaya simbiriirixashada tuubada gariir xad dhaaf ah
Waxa uu ilaaliyaa 95% xooga xajin ee bilowga ah kadib 500,000 wareegyada cadaadiska
Waxqabadka Cadaadiska Aan La Barkin
Lagu shaabadeeyey hawlgal joogto ah 6,000 PSI (414 bar)
Cadaadiska dilaaca ayaa ka badan 24,000 PSI (1,655 bar) ee shaybaarka
Cadaadiska gaarka ah-naqshad dheeli tiran waxay meesha ka saartaa dhibcooyinka daciifka ah
Heerarka Waxsoosaarka Saxda ah
CNC-oo laga sameeyay bir been abuur ah oo banaan (aan la shubin)
Waxay ilaalisaa ±0.001" dulqaadka cabbirka
Micro{0}oogada gudaha ee dhalaalaysa (Ra <0.4μm) waxay ka hortagtaa naaxinta tuubada
Ilaalinta Daxalka Sare
Milatariga -Spec Zinc{1} nikkel plating (1,{3}}saac iska caabin milix ah)
316L ikhtiyaarka birta aan fiicnayn ayaa diyaar u ah codsiyada badda / kiimikada
Daawaynta marin-mareenka guduhu waxay ka hortagtaa wasakhowga dareeraha
Gariir & iska caabin naxdin leh
U adkaysta 20G culayska gariir (MIL{1}}STD-810G la tijaabiyey)
Samaynta daawaha gaarka ah waxay ka hortagtaa adkeynta shaqada
Waxay ilaalisaa hufnaanta shaabadda ilaa 100,{1}} wareegyada gariir
Faa'iidooyinka Rakibaadda
Laser{0}}Calamadaha qiimaynta cabbirka iyo cadaadiska
Tilmaamayaasha qallafsan ee hore loo hagaajiyay ee caddaynta aragga -
30% ka dhaqsiyaha badan wareegga crimping marka loo eego heerka warshadaha
Tayada Alaabta Qiimaha Badan
Diyaarad{0}}darajada AISI 10B38 bir leh caabbinta daalka oo la xoojiyey
Raadinta walxaha buuxa oo wata shahaadooyinka tijaabada shiidka
100% walxo birlab ah ayaa laga baaray cilladaha
Waafaqid Universal
shahaado la jaan qaadaya dhammaan noocyada tubooyinka waaweyn (Gates, Parker, Eaton)
Wuxuu la shaqeeyaa SAE 100R1, R2, R12, R13, R15 tuubooyinka taxanaha ah
Buuxiyay ISO 18752 iyo SAE J517 heerarka caalamiga ah
Hubinta Tayada Adag
100% cadaadiska caddaynta ee la tijaabiyay ka hor inta aan la dhoofin
Nidaamka kormeerka indhaha ee otomaatiga ah
Raadinta koodhka QR ee qayb kasta
Ilaalinta dammaanadda aan la barbar dhigi karin
Dammaanadda alaabta nolosha
7-sano damaanad waxqabad
24/7 taageero farsamo oo leh dammaanad jawaab celin 2-saac ah
FAQ
Maxaa ka dhigaya ferrule-gaaga 4-fire mid ka sarreeya naqshadaha 2-siliga caadiga ah?
Tignoolajiyadayada 4-xarigga ah ee shatiga leh ayaa bixiya:
40% xoog badan oo xajin shucaac ah
Xitaa qaybinta cadaadiska agagaarka tuubada
Iska caabin gariir heer sare ah
Waxay tirtirtaa qulqulka tuubada ee codsiyada cadaadiska sarreeya
Waa maxay qiimaynta cadaadiska ay ferrulesadu taageeraan?
Awoodaha cadaadiska caadiga ah:
Cadaadiska shaqada: 6,000 PSI (414 bar)
Cadaadiska caddaynta: 9,000 PSI (621 bar)
Cadaadiska dilaaca: 24, 000+ PSI (1,655 bar)
Noocyada cadaadiska sare ee gaarka ah ayaa diyaar ah
Maxaa agab ah oo la heli karaa?
Ikhtiyaarada caadiga ah:
Zinc{0}} nickel plated steel carbon (1,500 sac milix buufin)
316L bir aan lahayn (heerka badda)
Qalabka gaarka ah:
Duplex ahama
Alloys inconel
Titanium (codsiyada hawada hawada)
Sideen ku dooran karaa cabbirka saxda ah ee ferrule?
Shuruudaha xulashada muhiimka ah:
Ku habboon tuubada OD iyo dhexroorka siliga
Tixgeli cadaadiska shaqada ee nidaamka
Xisaabta kala duwanaanta heerkulka
Injineeradayadu waxay bixiyaan gargaar cabbirro bilaash ah
Qalab noocee ah ayaa loo baahan yahay?
La jaanqaadi kara:
Dhammaan dambiilayaasha summadaha waaweyn (Gates, Parker, Eaton)
Waxay u baahan tahay isku-darka qalabka dhinta
Xoog qallafsan oo lagu taliyay: 25-35 tan
Qeexitaanno crimp oo faahfaahsan ayaa lagu bixiyay dalab kasta
Feerkaagu ma waafaqsan yihiin dhammaan noocyada tubooyinka?
Loo xaqiijiyay:
SAE 100R1, R2, R12, R13, R15
EN 853, EN 856
DIN iyo tuubooyinka caadiga ah ee ISO
Laguma talinayo tuubooyinka thermoplastic
Waa maxay wakhtiga aad hogaaminayso amarada?
gaarsiinta caadiga ah:
Alaabta kaydka ah: 24-48 saacadood
Cabbirrada gaarka ah: 5-7 maalmood oo shaqo
Qalabka gaarka ah: 2-3 toddobaad
Adeeg degdeg ah ayaa diyaar ah
Ma bixisaa tilmaamo qallafsan?
Xidhmada taageerada oo dhammaystiran waxaa ka mid ah:
Talaabada -ee{1}} hagayaasha crimping tillaabo
jaantusyada dhexroorka Crimp
Fiidiyowga rakibida
Taageerada farsamada goobta (ikhtiyaar)
Waa maxay shahaadooyin tayada aad haysatid?
Shahaadooyinka hadda:
ISO 9001:2015
API Q1
PED 2014/68/EU
DNV-Ogolaanshaha badda ee GL
Maxaa dayactir lagu talinayaa?
Tallaabooyinka ka hortagga:
Kormeero muuqaal ah oo sanadle ah
Torque wuxuu hubiyaa 500 saacadood kasta
Beddelka ka dib 5 sano ama 50,000 wareeg
Tijaabada cadaadiska ka dib dib-u-ururinta
